Injection Robot, 3 Axis Servo Telescopic Arm for IMM 150-320T, Get Quotation Now
Item No:SW6710DS
Recommended IMM:150-320T
Payload:6kg
Cycle Time:7s
Collection
Payments:
  • 产品详细信息
  • 包装和运输

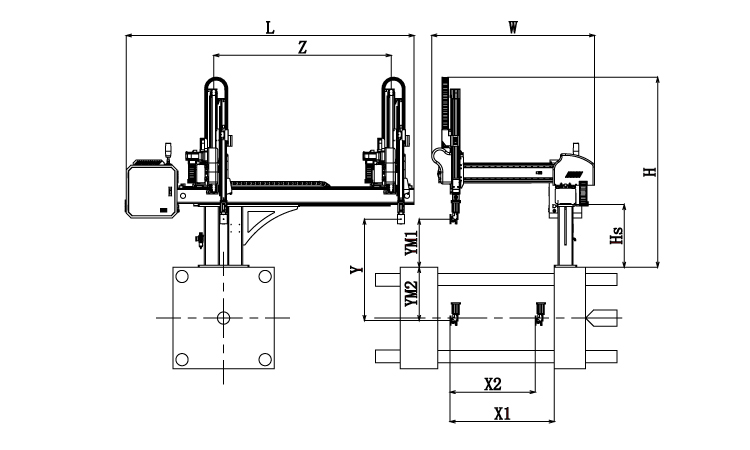

Installation Dimension of SWITEK 3 Axis Servo Telescopic Arm Injection Robot for IMM 150~320T


injection robot

X1 X2 Y YM1 YM2 W L Z H Hs
1030 840 1200 475 725 1690 3150 2000 2010 620

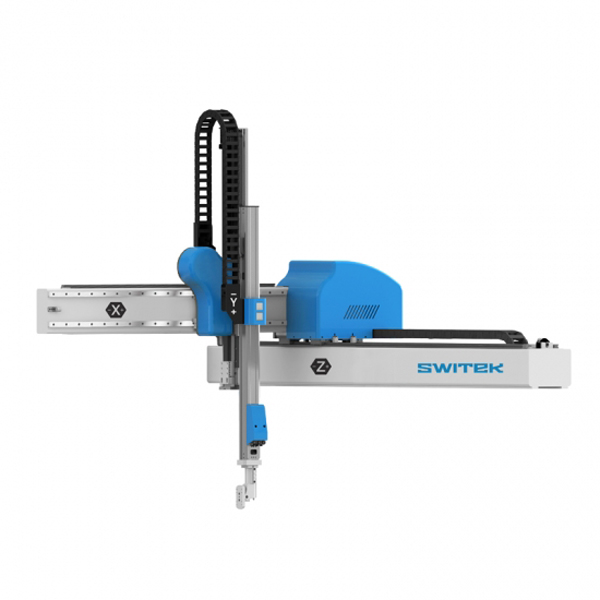

Introduction: SWITEK 3 Axis Servo Injection Robot Telescopic Arm for Injection Molding Machine 150~320T SW6710DS

SW6710DS is a kick forward desing injection robot for injection molding machine 150~320T with a payload up to 8kg. As a robot of high stability and repeat precision, it's an ideal choice of the core robot for automation solutions of injection molding machine 150~320T.

Brands of Key Components for SWITEK 3 Axis Servo Injection Robot Telescopic Arm for Injection Molding Machine 150~320T SW6710DS

injection robot components


Some Tips About How to Choose a Right Robot for Your Automation System:


Picking:To ensure that the robot has sufficient arm length to reach the mold center of the injection molding machine to pick the products.

Take out:Ensure that it's possible to be picked out by a robot (Mold structure and product shape).

Put Down:Ensure that the robot can put the products on the conveyor as requested ( Depend on the height of the safe door and the size of the product).

Payload:Ensure that the robot arm has sufficient loading capacity to pick the product (Depends on the weight of the product).

Cycle time:Ensure that the robot will move fast enough to catch up the injection cycle of the injection molding machine.

Arms:For standard mold a single arm robot would be perfect, while dual arms robot for three plates mold.

Extra Servo Motor:4/5 Axis servo robot could be taken into consideration while there's a special demand of the moving speed, repeat precision etc.

EOAT:The custom made EOAT such as cooling, runner cutting, in mold insertion etc. will help to finish complex injecdtion process.



About SWITEK


What Makes Switek Technology a Reliable Injection Robot Supplier?


Quality:With ISO9001:2015 & CE Certified,  SWITEK has the capacity to ensure the quality of each robot and automation system delivered.

Innovation:National High Technical Enterprice since 2013, 5 patents of innovation, 65 patents of utility, DongGuang Industrial Robot R&D Center, 5 Software Copy Right and 4 Certificates of GuangDong Province High Tech Products well proofed the R&D capacity of SWITEK.

Service:With more than 20 after sales to provide you with online and infield technical support, SWITEK will promise a success start up of each robot right after its delivery.

Credit:Contract and credit unit of GuangDong Province since 2013


Injection Robot Certificates

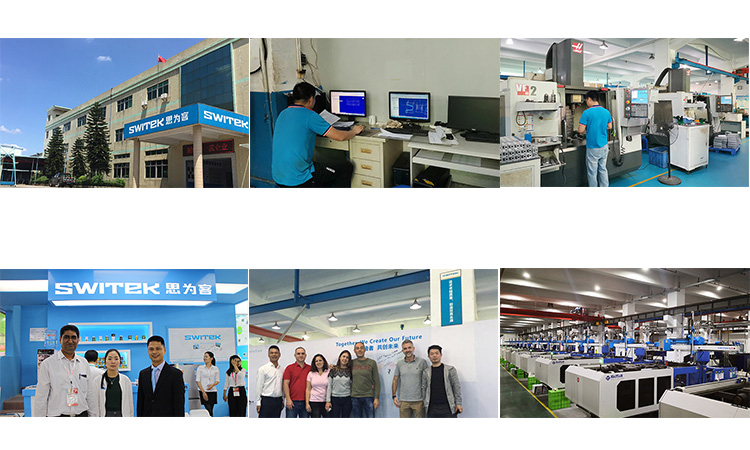

Visiting GuangDong Switek Technology Online



Injection Automation Applications:


1. SWITEK 3 Axis Servo Injection Robot 32 Cavities Blood TubesInjection Automation Solution


Hot Tags: Injection Robot, Injection Automation, 3 Axis Servo Injection Robot Telescopic Arm
