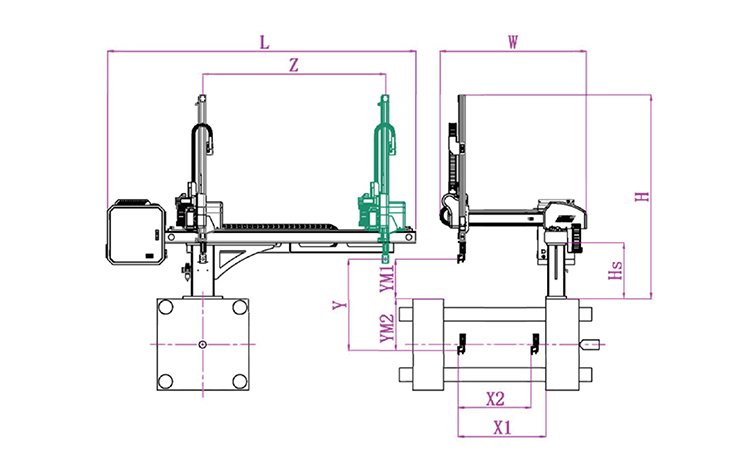

Installation Dimension of  SWITEK 3 Axis Servo Injection Robot for Injection Molding Machine 250~400T SW6712S

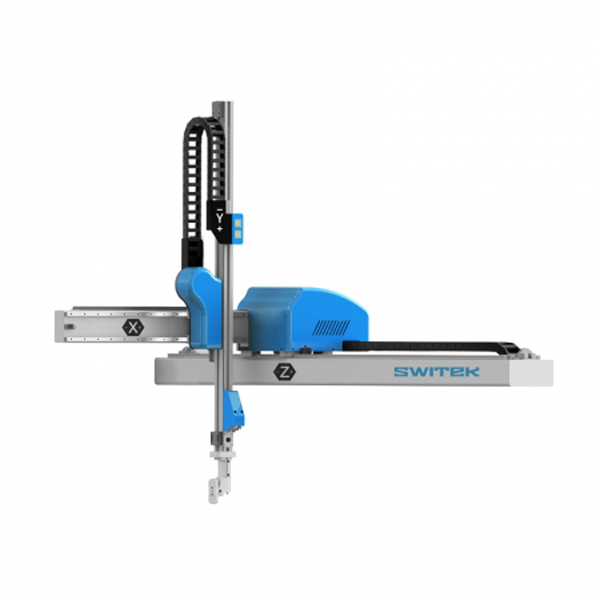

Introduction: About SWITEK 3 Axis Servo Injection Robot  for Injection Molding Machine SWSW6712S

SW6712S is a kick forward design 3 axis servo injection robot with a pay load up to 8kg for injection molding machine 250~400T. With high accuracy transmission mechanism and excellent repeat precision performance, it's one of the core injection robot among LESSO pipe fittings in mold insertion automation solutions.

Key Components of SWITEK 3 Axis Servo Injection Robot  SW6712S

Some Tips About How to Choose a Right Robot for Your Automation System:

Picking:To ensure that the robot has sufficient arm length to reach the mold center of the injection molding machine to pick the products.

Take out:Ensure that it's possible to be picked out by a robot (Mold structure and product shape).

Put Down:Ensure that the robot can put the products on the conveyor as requested ( Depend on the height of the safe door and the size of the product).

Payload:Ensure that the robot arm has sufficient loading capacity to pick the product (Depends on the weight of the product).

Cycle time:Ensure that the robot will move fast enough to catch up the injection cycle of the injection molding machine.

Arms:For standard mold a single arm robot would be perfect, while dual arms robot for three plates mold.

Extra Servo Motor:4/5 Axis servo robot could be taken into consideration while there's a special demand of the moving speed, repeat precision etc.

EOAT:The custom made EOAT such as cooling, runner cutting, in mold insertion etc. will help to finish complex injecdtion process.

Why is SWITEK Compectitive Compared to Other Robot Manufacturer In China？

Quality:With ISO9001:2015 & CE Certified,  SWITEK has the capacity to ensure the quality of each robot and automation system delivered.

Innovation:National High Technical Enterprice since 2013, 5 patents of innovation, 65 patents of utility, DongGuang Industrial Robot R&D Center, 5 Software Copy Right and 4 Certificates of GuangDong Province High Tech Products well proofed the R&D capacity of SWITEK.

Service:With more than 20 after sales to provide you with online and infield technical support, SWITEK will promise a success start up of each robot right after its delivery.

Credit:Contract and credit unit of GuangDong Province since 2013

Visiting Guang Dong SWITEK Technology Co., Ltd. Online

Injection Automation Application:

1. 8 Cavities Pipe Fittings ElbowMetal Parts In Mold Insertion Injection Automation Solution

2. 2 Cavities FaucetInjection Automation Solutions

3. Bottle Caps Master Carton LoadingAutomation Solution

4. Seat Belt Buckle Metal Parts In Mold InsertionAutomation Solution

5. SWITEK 3 Axis Servo Injection Robot Blades Injection Automation Solution
