Top Entry Beach Bucket IML Solutions
Product Origin:China
Brand:SWITEK
Item No.:IML Beach Bucket
Shipping Port:SHENZHEN
Color:Custom Made
Lead Time:75Days
Characteristic of 3 axis servo robot arm top entry beach bucket IML Solution
1. Economic: Top entry beach bucket IML solution with a 3 axis servo robot arm as the core robot to finish the label insertion-products picking-products stacking. Which help to simplify the structure of the IML system and easy for maintenance.
2. Easy for upgrading: For your convenience of multi products IML production wiith the same system, SWITEK top entry beach bucket IML solution adopted a modular design structure. It's convenient to replace the magazine and EOAT for new products production.
3. High efficiency: SWITEK top entry beach bucket IML solution with a high speed 3 axis servo robot arm as the core robot for label insertion and products picking/products stacking, the cycle time of the label insertion-products picking and stacking in about 19s.
4. Compact design: The top entry beach bucket IML solution have the robot installed on the top of the injection molding machine, the whole system will occupy less space floor, it'll enable you to install more IML system in the same workshop.

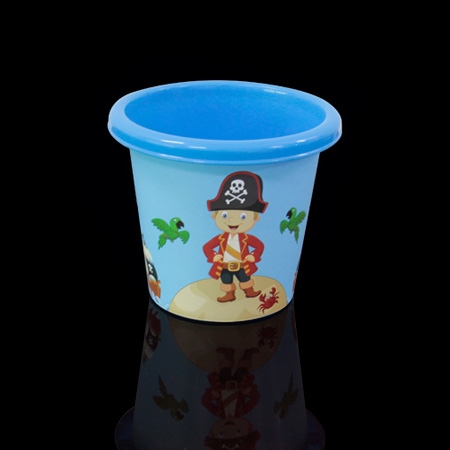

Measurement of the beach bucket
The layout of the mold
The specification of the mold
MODEL | |
Cavity | |
Mold Base | |
Cavity & Core | |
Guarantee Mold Life (Short) | |
Hardening Process | |
Injection Way |
The specification of the injection molding machine
MODEL | |
Screw Diameter | |
Shot Weight | |
Screw Speed (Normal) | |
Screw Speed (Max) | |
Clamping Force (kN) | |
Opening Stroke (mm) | |
Platen Size (mm) | |
Mold Thickness (Min.-Max.) | |
Dimensions (L x W x H) |
The specification of the robot
MODEL SW7110S Recommended IMM (Ton) 50-350 Traverse Stroke(mm) 1400 Vertical Stroke(mm) 1000 Crosswise Stroke(mm) 450 Traverse Drive 3 Axial AC servo Take Out Time(Sec) 1.5 Dry Cycle Time(Sec) 3.3 Power(KVA)/(Phs) 3.9 Single Phase Working Pressure(kgf/cm^2) 5~7 Air Consumption(NL/cycle) 1.8 Max Load (kg) 5 Net Weight(kg) 402 Gross Weight(kg) / Size (L x W x H) mm 2000x1065x1820
MODEL | SW7110S |
Recommended IMM (Ton) | 50-350 |
Traverse Stroke(mm) | 1400 |
Vertical Stroke(mm) | 1000 |
Crosswise Stroke(mm) | 450 |
Traverse Drive | 3 Axial AC servo |
Take Out Time(Sec) | 1.5 |
Dry Cycle Time(Sec) | 3.3 |
Power(KVA)/(Phs) | 3.9 Single Phase |
Working Pressure(kgf/cm^2) | 5~7 |
Air Consumption(NL/cycle) | 1.8 |
Max Load (kg) | 5 |
Net Weight(kg) | 402 |
Gross Weight(kg) | / |
Size (L x W x H) mm | 2000x1065x1820 |
